SLX45 SLIT LAMP, 3 STEP, LED

SLX45 SLIT LAMP, 3 STEP, LED

SLx 45 Slit Lamp Microscope Specifications

  • Microscope Type: SLx 45 Slit Lamp with intelligent LED illumination system
  • Binocular Tube: 90° head
  • Eyepiece: WF 12.5X/18 mm, diopter adjustment ± 5mm
  • Magnification: 3-step options at 10X, 16X, and 25X
  • Illumination: 5W LED
  • Built-in Filters: Red-free, cobalt blue, heat absorbing, neutral density
  • Slit Dimensions:
    • Length/Width: 0 – 12 mm
    • Apertures: 0.3, 1.0, 3.0, 5.0, 9.0, 12.0 mm and continuous from 1.5 to 12.0 mm
  • Slit Rotation: 0 – 180°
  • Slit Tilt: 20°
  • Power Supply: 100-240V, 50/60Hz, 1.6 Amp

Movement Ranges:

  • Longitudinal (in/out): 100 mm
  • Lateral (left/right): 107 mm
  • Vertical (up/down): 30 mm
  • Chin Rest Range: 80 mm

Table Base Size: 367 mm x 360 mm x 5.5 mm, metal
Weight: 25 kg (packed)

Optional Accessories:

  • Tonometer
  • Breath shield

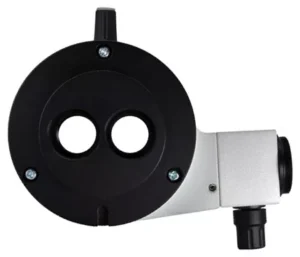

  • Beam splitter

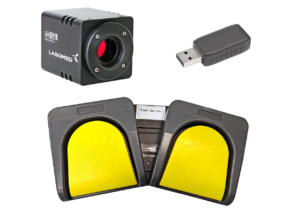

  • Cameras
  • Diffuser
  • Motorized table

The SLx 45 can adapt to any tonometer with a compatible mount; no special tonometer mount is provided.

Package Contents:

  • SLx 45 Slit Lamp microscope
  • Nylon dust cover
Quantity

Description

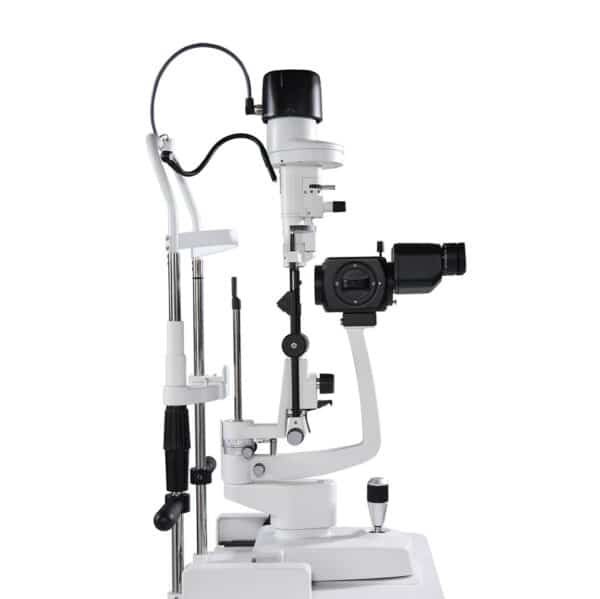

SLx 45 Slit Lamp with 3-Step Magnichanger and Table Mount

The SLx 45 Slit Lamp is a high-performance diagnostic tool designed for eyecare professionals, offering:

  1. Sturdy and Ergonomic Design:
    • Sturdy stand with fluid mechanical movement for prolonged use.
    • Apochromatic optics provide a clear view of anterior and posterior eye segments.
    • Compact illumination system for space efficiency.
  2. Optical and Illumination System:
    • 3-step magnification system (10X, 16X, 25X) with a 5W LED illumination.
    • LABOMED’s MaxLite™ coated optics for sharp, detailed images.
    • Anti-fungal, anti-fog, and scratch-resistant properties ensure long-term clarity.
  3. User Comfort and Durability:
    • Built for durability and ease of movement.
    • Accessories for customization: tonometers, beam splitters, adapters for cameras.
    • Lead-free optics and antimicrobial paints on contact surfaces for a healthier environment.
  4. Enhanced Patient Safety:
    • Components are antitoxic and anti-irritation.
    • Tonometer integration for IOP readings.
    • Beam splitters and adapters for third-party camera integration.
  5. Summary:
    • Combines advanced optical performance and ergonomic design.
    • Efficient 5W LED illumination and 3-step magnification for precise diagnostics.
    • Antimicrobial coatings for a hygienic environment.
    • Ideal for modern ophthalmic practices, ensuring accurate patient assessment and enhanced comfort.

The SLx 45 Slit Lamp is a versatile and durable tool that enhances diagnostic capabilities while ensuring user comfort and safety.
