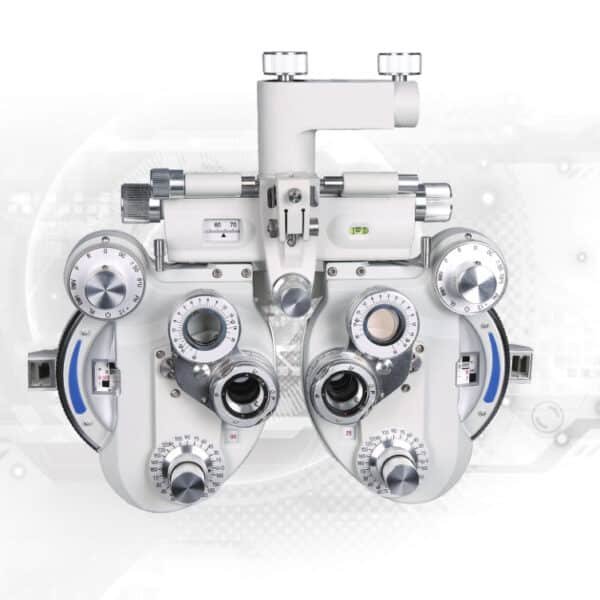

Introducing the TW-1410 Phoropter, a sophisticated instrument designed for precise refraction during eye examinations. This phoropter combines advanced optics with ergonomic design, allowing for efficient and accurate vision testing. Featuring a comprehensive range of lenses and intuitive controls, the TW-1410 enables customizable refraction workflows tailored to individual patient needs. Enhance your practice with this versatile phoropter, ensuring optimal vision correction and patient satisfaction.
Specifications-
Spherical power -19.00m-+ 16.75m (Step Length: 0.25m)
Astigmatic power 0–6.00m'(Step Length: 0.25m’)
Cylinder axis 0-180° (Step: 5*.estimate to 1)
Rotary prisms 0-20A (Steps: 1)
Prism base
0-360° (Step: 5°, estimate to 1″)
Cross cylinder +0.25m
P.D. adjustment 50mm-75mm (1mm steps)
Forehead adjustment 16mm
Mirror angular distance 13.75mm
Dimensions
320mm x 305mm x 100mm
Carton size
485mm x485mm x245mm
Weight G.W: 6.55kg / N.W: 4.75kg
