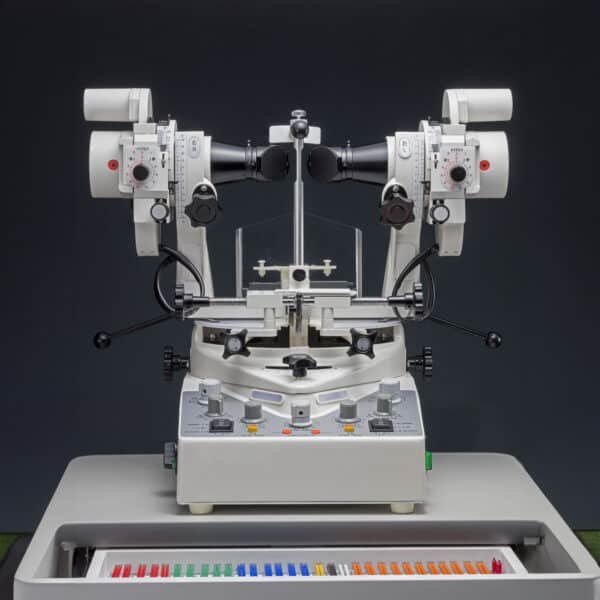

Name: Synoptophore – YZ23B
SKU: 394
Price: 4589.00 EUR
Availability: InStock

Synoptophore – YZ23B

€4.589,00 excl. VAT · €5.552,69 incl. VAT

Personal answer within 24 hours by WhatsApp or email

0% VAT for EU businesses with a valid VAT number

Secure payment iDEAL | Wero, card, Apple Pay, SEPA or in3

Delivered across Europe parcel or freight, depending on size

Specifications

Characteristics:
Combines diagnostic, treatment, simultaneous viewing, syncretic viewing, solid viewing, and afterimage functions. Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different angles. Features an advanced semi-transparent and semi-reflecting viewfinder for convenient observation. Utilizes advanced LED illuminator with even light distribution, low thermal output, and long lifespan. Pictures are designed to be anti-broken and long-lasting. Offers manual or automatic coruscation options with precise frequency control.

Specifications:
Magnification: 1.65x Diameter of Visual Field: 56mm Red Light Wavelength: 640nm Left and Right Tube Movement: Erect axis – Concourse 50°, Radiation 40°; Horizontal axis – ±30° Adjustable Pupil Distance: 45-75mm Darkroom Illumination: LED with symmetry design Adjustable Haidingers Brush: 50-100 rounds/minute Coruscation Options: Manual or automatic with ten-step frequency control (30-300 times/minute) Automatic Coruscation Range: Adjustable cycles with various on/off configurations for left and right tubes Packing Volume: 0.425 m³ Total Weight: 61kg
