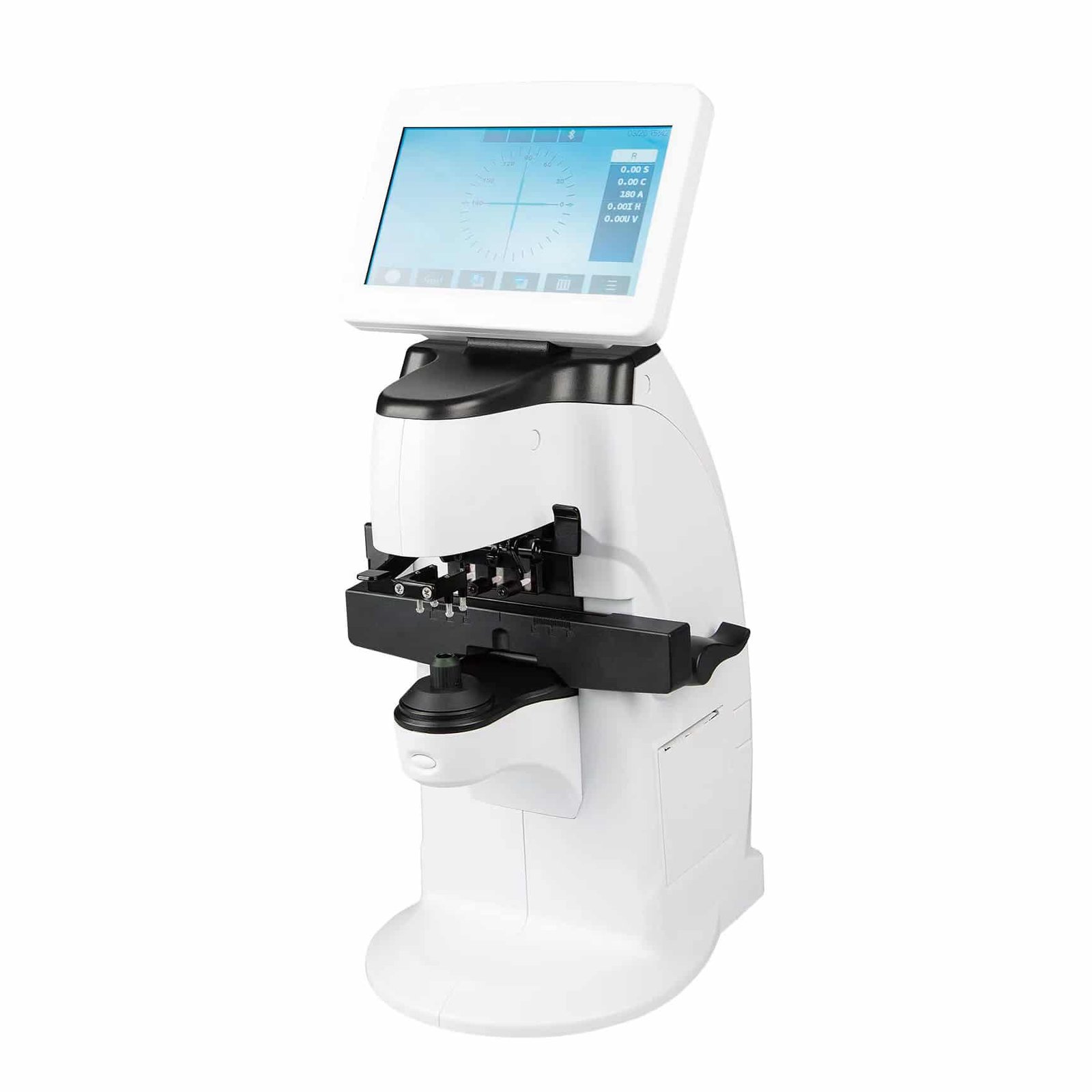

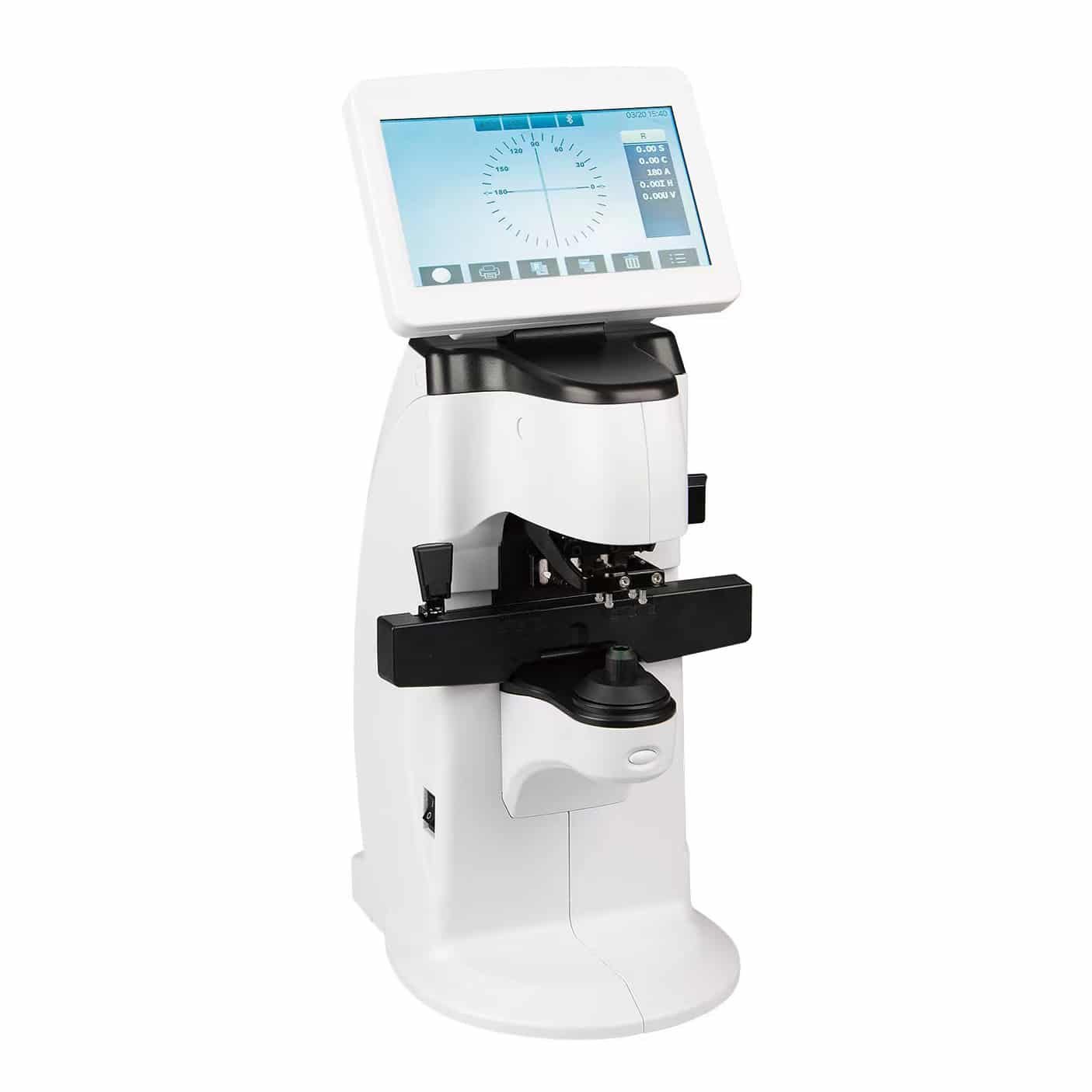

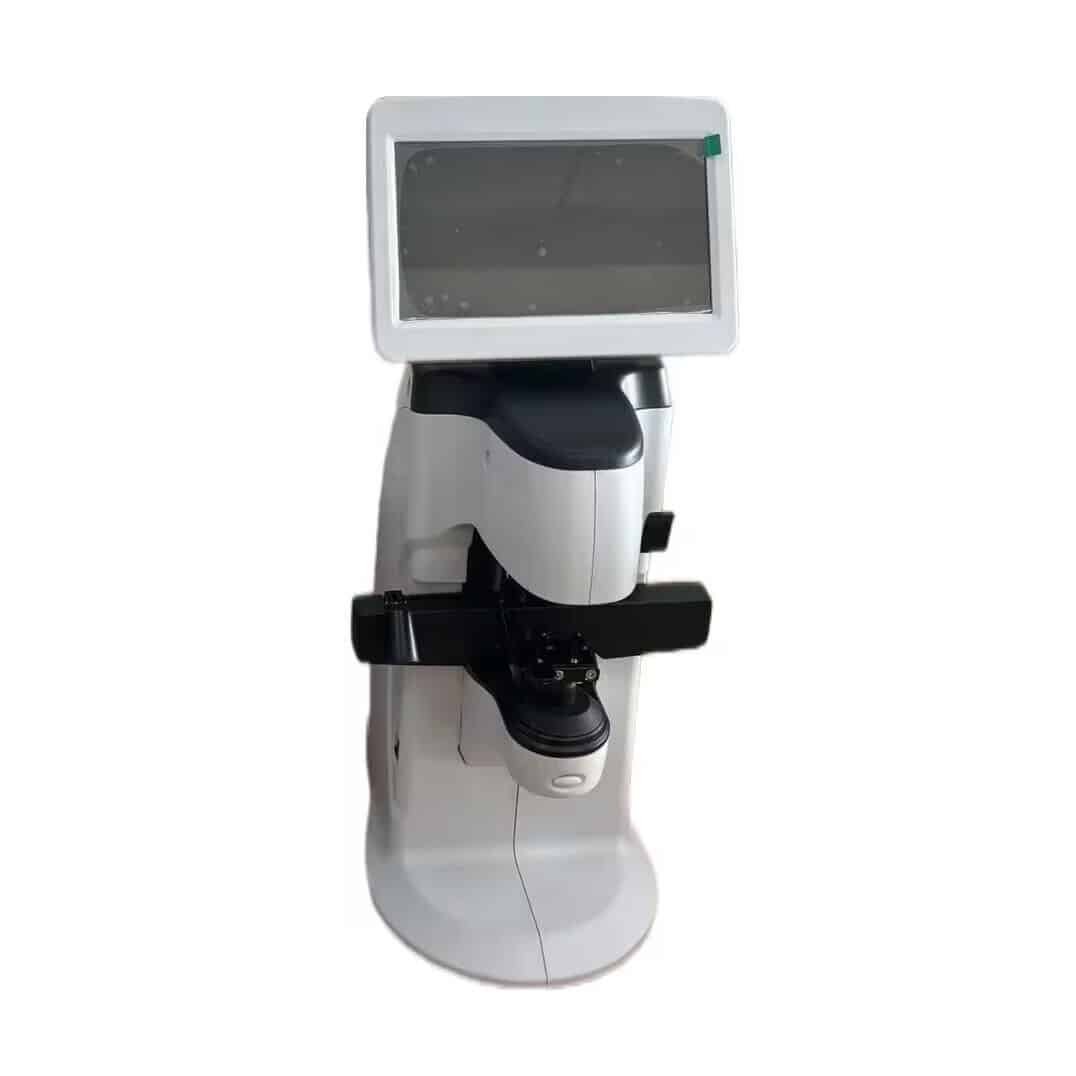

Lensmeter Auto TW-6080

Lensmeter Auto TW-6080

Measurement range
Sphere Cylinder Axis ADD -40.00D +25.00D, O~10.00D, 0°~180° (1°Steps), 0~10.00D
Prism 0~10∆
Minimum measuring value
Diopter 0.01/0.12/0.25D Prism 0.01/0.12/0.254
Other information
Cylinder +/±/- Prism X-Y P-B
Measure speed 0,05s, light source wavelength 525nm
UV wavelength 400nm, Blue light wavelength 425nm
Lens diameter 18-100mm Display 7” (1024*600) True color capacitor touch.
Thermal printer, Data connection RS232, BLE, SPP
Size 235(L)*192(W)*436(H)mm Weight 3,7Kg
Power Supply 110V-240V 50Hz-60Hz
Power 5V 6A

Quantity

    Description

    The computer-controlled and automatic reading process begins with user input and mode selection, supported by a highly sensitive optical path control ensuring precision for diverse lens types. Automatic calibration corrects any deviations during measurement. Equipped with UV, blue light, and visible light measurement, along with a virtual pupil distance ruler, the device offers comprehensive analysis. Wireless Bluetooth connectivity facilitates seamless data transfer. Optional features include pupil distance measurement and thermal printing, enhancing the device’s versatility for optical measurement and analysis.
