MICROSCOPE SPECIFICATIONS

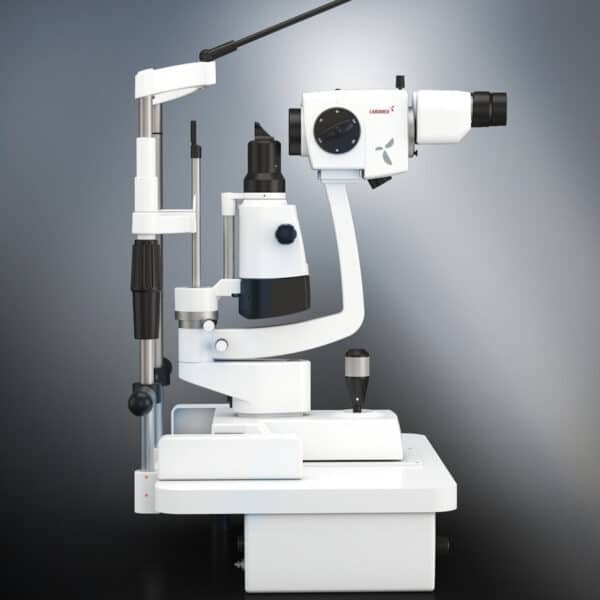

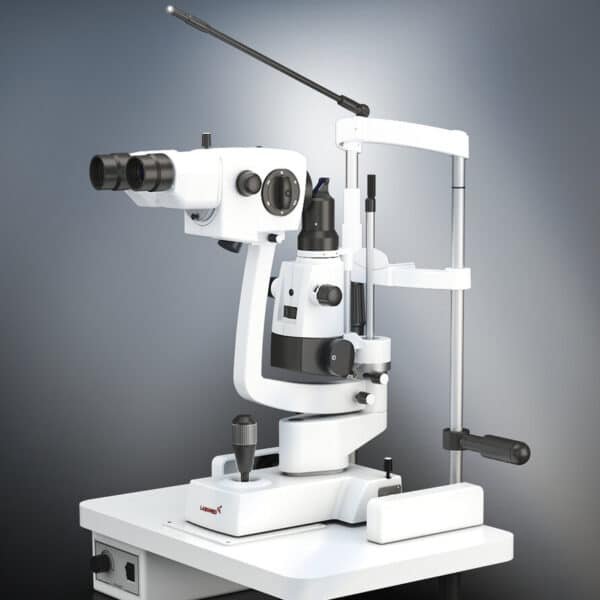

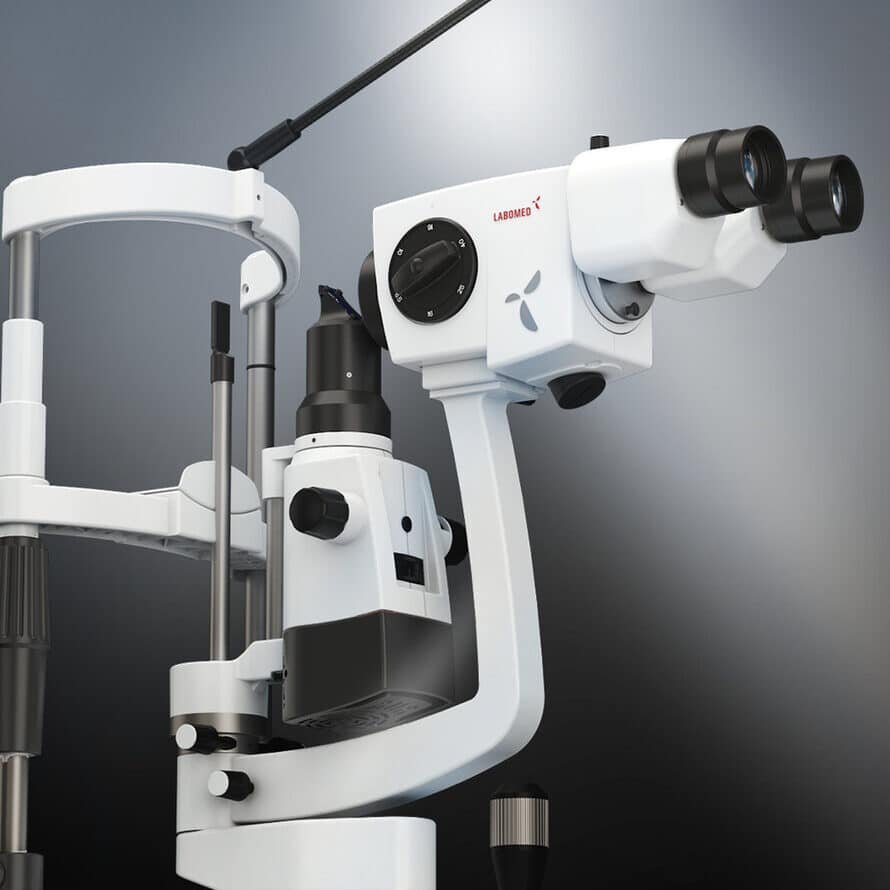

Model: eVO300 Slit Lamp Microscope

Illumination System:

• Equipped with an intelligent LED illumination system for enhanced visibility and clarity.
• Light Source: 5W LED, providing bright and consistent illumination.

Optical System:

• Binocular Tube: Features a 90° head for comfortable and precise viewing.
• Eyepiece: Wide Field (WF) 12.5X/18 mm with diopter adjustment range of ± 5mm to accommodate different visual requirements.
• Magnification Levels: Offers 5-step magnification options: 6.5X, 10X, 16X, 25X, and 40X, allowing for detailed examination at various levels of zoom.

Filter Options:

• Red-free filter
• Cobalt blue filter
• Heat-absorbing filter
• Flip-in Wrattan filter: Integrated into the optical chamber for convenient fluorescein exams.

Slit Adjustments:

• Slit Length/Width: Adjustable from 0 to 13.5 mm to suit different examination needs.
• Slit Apertures: Provides multiple aperture sizes: 0.6 mm, 5.8 mm, 9.0 mm, 13.5 mm, and a continuous adjustment range from 1.5 to 12.0 mm, allowing for precise control of the slit size.
• Slit Rotation: Capable of rotating from 0 to 180°, offering flexibility in examination angles.

Power Supply:

• Voltage: Compatible with a wide range of power inputs, operating at 100-240V.
• Frequency: 50/60Hz.
• Current: Requires 1.6 Amp, ensuring stable and efficient operation.

Movement Ranges:

• Longitudinal (In/Out): 100 mm, allowing for front-to-back adjustments.
• Lateral (Left/Right): 107 mm, providing side-to-side movement.
• Vertical (Up/Down): 30 mm, enabling height adjustments.
• Chin Rest Range: 80 mm, ensuring patient comfort and optimal positioning.

Table Base Size: The base of the microscope measures 465 mm x 316 mm, providing a stable and spacious platform for operation.

Weight:

• Microscope with Carrier: 2.8 kg, ensuring easy maneuverability.
• Swivel Arm: 8 kg, providing stability and support.
• Base with Pillar: 30 kg, ensuring a sturdy foundation for the entire setup.

Optional Accessories:

• Tonometer: For measuring intraocular pressure.
• Beam Splitter: For sharing the view with another observer or attaching a camera.
• Cameras: For capturing images and videos of the examination.
• Diffuser: For softer lighting options.
• Motorized Table: For easy height adjustments and improved ergonomics.

PACKAGE CONTENTS

• eVO300 Slit Lamp Microscope: Complete with a 90º head for versatile viewing.
• Nylon Dust Cover: Protects the microscope from dust and environmental damage when not in use.
