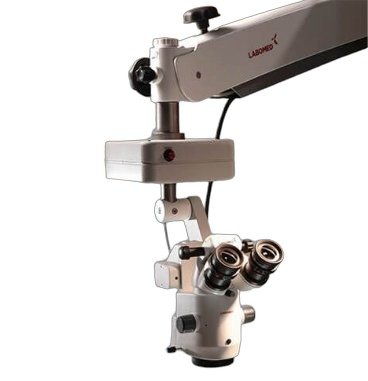

The Prima OPH pairs an apochromatic optical system with a super-bright 105,000 Lux LED (5700K) and full motorized XYZ movement, built for cataract removal and general ophthalmic microsurgery. Electronics built directly into the swivel arm keep it one of the most compact microscopes in its class, while RedReflex illumination and MaxLite coatings deliver sharp, artifact-free, durable optics through every procedure. ProLine camera adapters let you add a digital SLR or video camera for recording and teaching.
Specifications
- Binocular tube: 45° inclined head
- Eyepiece: WF 10x/16 mm with eye guards, ±5 mm dioptre adjustment and lock (optional WF 12.5x/16 mm)
- Magnichanger: apochromatic 5-step, 0.4x / 0.6x / 1.0x / 1.6x / 2.5x
- Objective: f=200 mm
- Illumination: 50W LED, 105,000 Lux
- Built-in filters: green & blue
- Vertical arm movement: 550 mm
- Power supply: 100-240V, 50/60Hz, 1.6 Amp

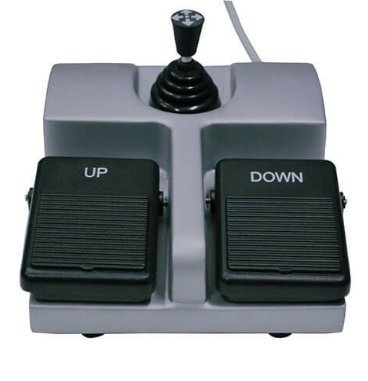

- Microscope carriers: multi-axial (XYZ) foot control, or single-axis (Z) foot control
- Optional accessories: 0-210° tiltable ergonomic head, double beam splitter, assistant binocular attachment, ProLine camera adapters
- Includes: 45° inclined-head microscope, objective CMO 200 mm, securing tools, sterilizable knob covers, nylon dust cover
Compare both Prima OPH microscopes →
